Two Hickok 100-0-100uA Meters - one NOS - one dead

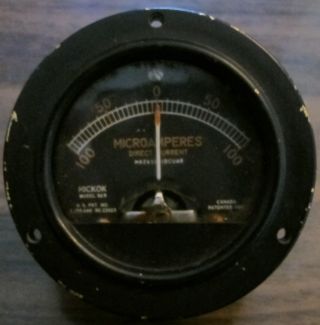

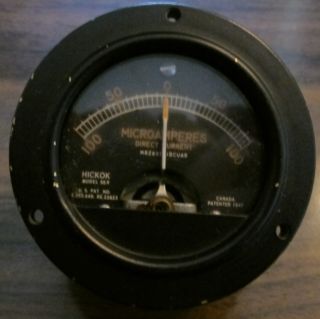

This is a Hickok 100-0-100uA Meter Model 56R.
The scale is marked 100-0-100 DC Microamps
The coil measures 800 ohms.
F.S. = +-100ua at +-80mV

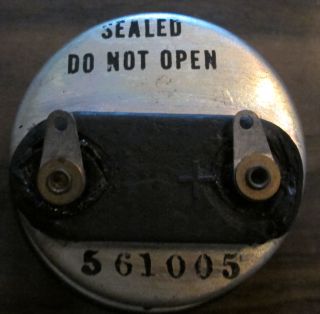

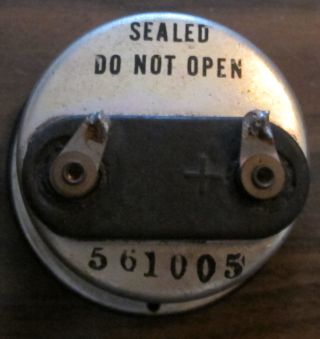

One meter appears to be NOS as there is no solder on the connection ears.
The other meter is dead as the coil is shorted.
The meter is 2-5/8 inches round.
The three mount holes are 2-1/8 inch centers around the flange.
The meter is mounted on a panel through a 2-1/4 inch diameter hole.
This part is sold as is (no return).
