Title: Re-tube Kit for BC-745 Radio
Item: [kit-1] $30.00
Title: Re-tube Kit for BC-745 Radio
Item: [kit-1] $30.00

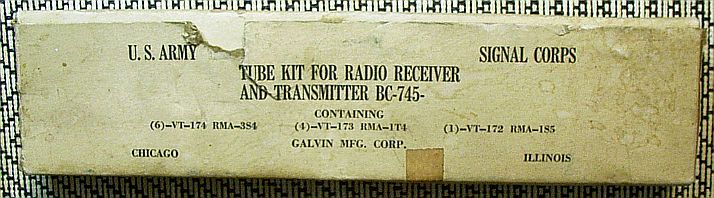

U.S. Army Signal Corps Tube Kit for Radio Receiver and Transmitter BC-745
Containing (6)-VT-174 RMA-3S4, (4)-VT-173 RMA-1T4, (1)-VT-172 RMA-1S5

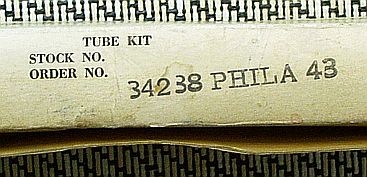

by Galvin Mfg. Corp. Order No. 34238PHILA43
This is a re-tube kit for the BC-745 Radio. It appears that some of the
tubes were used at some point (some of the tube dates are later than the
1943 date on the kit box), but the missing tubes were replaced with
NOS tubes. The tubes are contained in a cardboard kit box.
The box has a tear at the top of one side.
All tubes in the kit are NOS (New Old Stock).
Condition and test results listed below.
Each tube has its own tag showing the condition and test results.

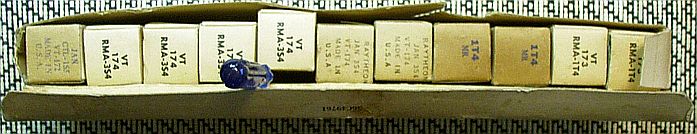

The kit contains the following tubes:
1S5/VT-172, Tung-Sol, 130% Diode:120%, 600/525Gm, NOS (OB), (M7) JAN
1T4/VT-173, RCA, 120%, 800/750Gm, NOS (OB), black lettering - JAN
1T4/VT-173, RCA, 130%, 800/750Gm, NOS (OB), black lettering - JAN
1T4, Radiocoin, 120%, 850/750Gm, NOS (OB), ---
1T4, Radiocoin, 110%, 800/750Gm, NOS (OB), ---
3S4/VT-174, Tung-Sol, 130%, 1800/1300Gm, NOS (OB), (M7) JAN
3S4/VT-174, Tung-Sol, 130%, 1800/1300Gm, NOS (OB), (M7) JAN
3S4/VT-174, Tung-Sol, 120%, 1800/1300Gm, NOS (OB), (M7) JAN
3S4/VT-174, Tung-Sol, 120%, 1800/1300Gm, NOS (OB), (M7) JAN
3S4/VT-174, Raytheon, 120%, 1800/1300Gm, NOS (OB), (M7) JAN
3S4/VT-174, Raytheon, 115%, 1900/1300Gm, NOS (OB), (M7) JAN
